Quickstart

Requirements

• Python 3.8+

• PyQt5, numpy, scipy, matplotlib, Dans_Diffraction (see requirements.txt)

Install

Pick one of the following:

• From PyPI (recommended):

  pip install advisor-scattering


• From GitHub (latest main):

  git clone https://github.com/HongXunyang/advisor.git
  cd advisor
  python -m venv .venv
  source .venv/bin/activate  # or .venv\Scripts\activate on Windows
  pip install -r requirements.txt
  pip install .


Run

advisor-scattering
# or
advisor
# or
python -m advisor

Minimal workflow

1. Launch the app.

2. Enter lattice constants/angles and beam energy, or drop a CIF file.

3. Click Initialize.

4. Switch between feature tabs (Brillouin / Structure Factor) to calculate and visualize.

Animation Example

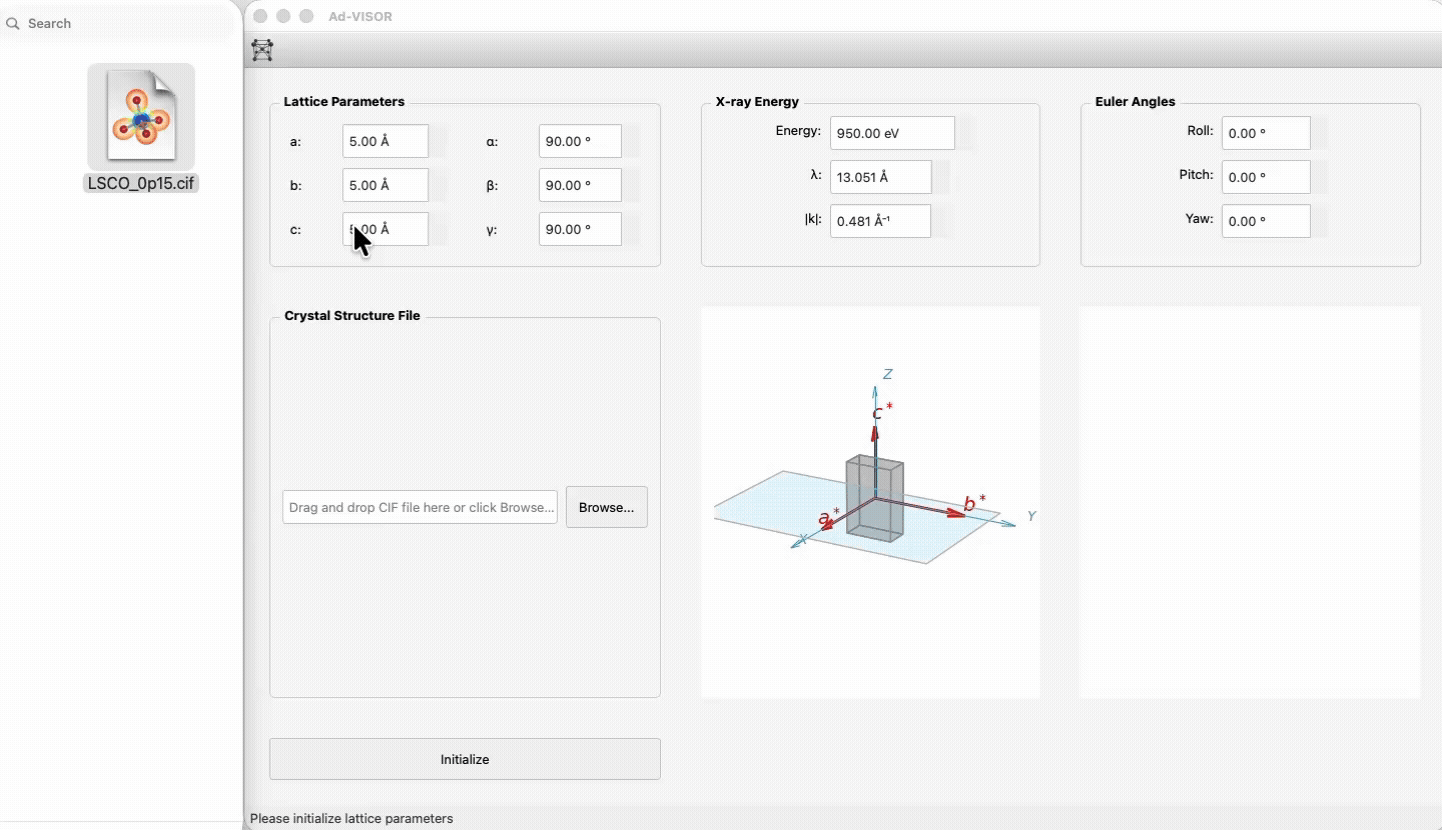

Here is a demonstration of the initialization process:
